Engine Testing Service

SAKOR’s Automotive Test Services Group provides a wide variety of engine dynamometer-based testing services for development and durability applications within the automotive and petrochemical industries.

We can perform a wide array of engine testing services, but will specialize in engineering value-added programs which take advantage of SAKOR’s powerful and flexible in-house software capabilities, and a knowledgeable, experienced engineering and technical support staff.

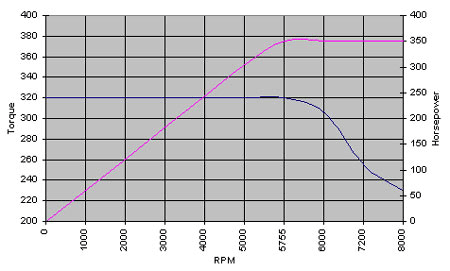

Our primary test cell is based upon a High Performance 350 HP AC Motoring Dynamometer, capable of 8000 RPM and 320 ft.lb continuous torque ( 500 ft.lb intermittent). SAKOR’s proprietary DynoLAB PT Engine Cell Controller provides unequaled abilities for controlling and monitoring various test and engineering parameters including:

  • Fully automated test cycle management

  • Unattended 24/7 operation

  • Dynamic profiling/simulation capabilities

  • Flexible data logging/reporting

  • High speed data logging capabilities
Typical test programs include:
  • Engine and Component Durability / Lifetime Testing

  • Engine and Component Engineering Studies

  • Engine and Component Performance Comparisons

  • Fuels, Lubricants, and Fluids Evaluation



SAKOR test stands offer precision control and monitoring of large number of test parameters:

  • Speed and Load

  • Temperature and Humidity

  • Pressures and Flows

  • Voltages and Currents, and much more…
Additional capabilities available -
  • Quick-change cart system for easy part changeover

  • Wide array of pressure and temperature sensors

  • Independent coolant and oil temperature control

  • Fuel flow measurement

  • Air flow measurement

  • Closed-loop Spark/Fuel control
Our AC dyno test cell can perform a large variety of test protocols, including:



• Performance Sweeps
• Road/track simulation
• Engine calibrations
• Durability cycling

• Component testing
• Thermal cycling
• Transient loading
• Unfired testing
• And much more...

SAKOR’s technical staff is available to assist customers with their test program development, program management, test design, and various engineering and support services. SAKOR is also capable of providing our customers with complete turnkey dynamometer-based test systems, control systems, and a broad range of auxiliary components to a complete test system.

Please contact SAKOR Technologies, Inc. for a more detailed description and discussion of contract test services that may be available. SAKOR also offers dynamometer-based and other specialized testing of electric motors and various motorized devices. With our staff of highly trained and experienced engineers, and unique access to the engineering resources of Michigan State University, SAKOR can design and deliver a wide range of engineering test instruments and testing services.
